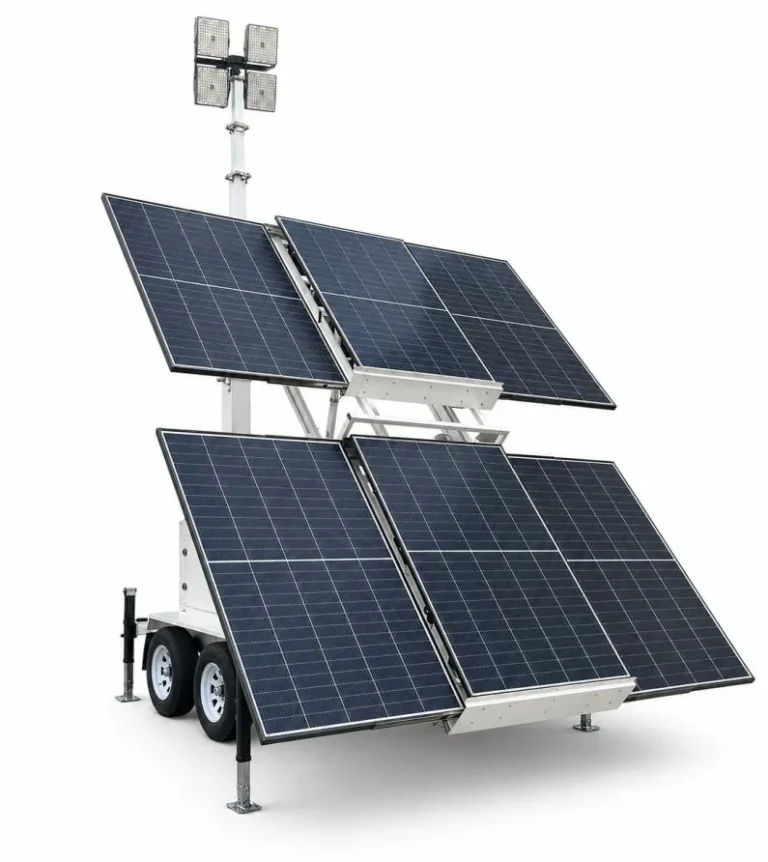

ILTM90M-SH4 Hybrid Solar Light Tower
Model: ILTM90M-SH4
Power type: Solar
ILTM70M-S Solar Light Tower
Model: ILTM70M-S
Key Specifications
- Power system: 100% pure solar energy
- Light power: 4 × 100 W LED
- Max lifting height: 7.0 m (23 FT)
- Solar array: 900 W (3 × 300 W)
- Runtime (full load): 12 hours
- Gross weight: 700 kg
Specifications & Options
Product Details
The ILTM70M-S is a 100% solar light tower for off-grid sites. Four 100 W LED lamps (36,000 lm) sit on a manual-winch mast that rises to 7.0 m, powered by a 900 W solar array and a 6 kWh GEL battery bank, and it runs 12 hours on a full charge with all lights on.
Specifications
| Model | ILTM70M-S |
|---|---|
| Power system | 100% pure solar energy |
| Light source type | High-efficiency LED |
| Power of lights | 4 × 100 W |
| Total luminous flux | 36,000 Lm (4 × 9000 Lm) |
| Illumination area | 1500 ㎡ |
| Protection grade | IP65 weatherproof |
| Light adjustment | Electric rotation, vertical angle 0–90° |
| Lifting method | Manual winch mast |
| Max lifting height | 7.0 m (23 FT) |
| Total solar array capacity | 900 W (3 × 300 W) |
| Panel type | Monocrystalline silicon |
| Panel deployment | Manual slide-out with heavy-duty rails |
| Battery type | Deep-cycle GEL battery |
| Battery bank capacity | 6 kWh (2 × 250 Ah / 12 V DC) |
| Controller type | MPPT solar controller |
| Control modes | Time control / Light control / Manual switch |
| Charging time | Approx. 10 hours (under direct sunlight) |
| Runtime (full load) | 12 hours (100% charge, all lights on) |
| Chassis type | Single axle |
| Wheel size | 2 × 165 R13 |
| Outriggers | 4 removable swivel jacks |
| Tow hitch & bar | Ball adapter / retractable supporting wheel tow bar |
| Brake system | Mechanical parking brake |
| Tail lights | Rear tail reflectors |
| Max. towing speed | 80 km/h (50 mph) |
| Wind speed rating | 80 km/h (50 mph) |
| Max working size | 2300 × 2800 × 7000 mm |
| Transport dimensions | 2300 × 1100 × 2450 mm |
| Gross weight | 700 kg |
