ILTM90M-SH4 Hybrid Solar Light Tower
Model: ILTM90M-SH4
Key Specifications
- Power system: Hybrid (solar + diesel backup)
- Light power: 4 × 100 W LED
- Max mast height: 9.0 m (29.5 FT)
- Solar array: 2000 W (5 × 400 W)
- Runtime (full load): ≥30 hours (battery only) / continuous (hybrid)
- Gross weight: 1950 kg
Specifications & Options
Product Details

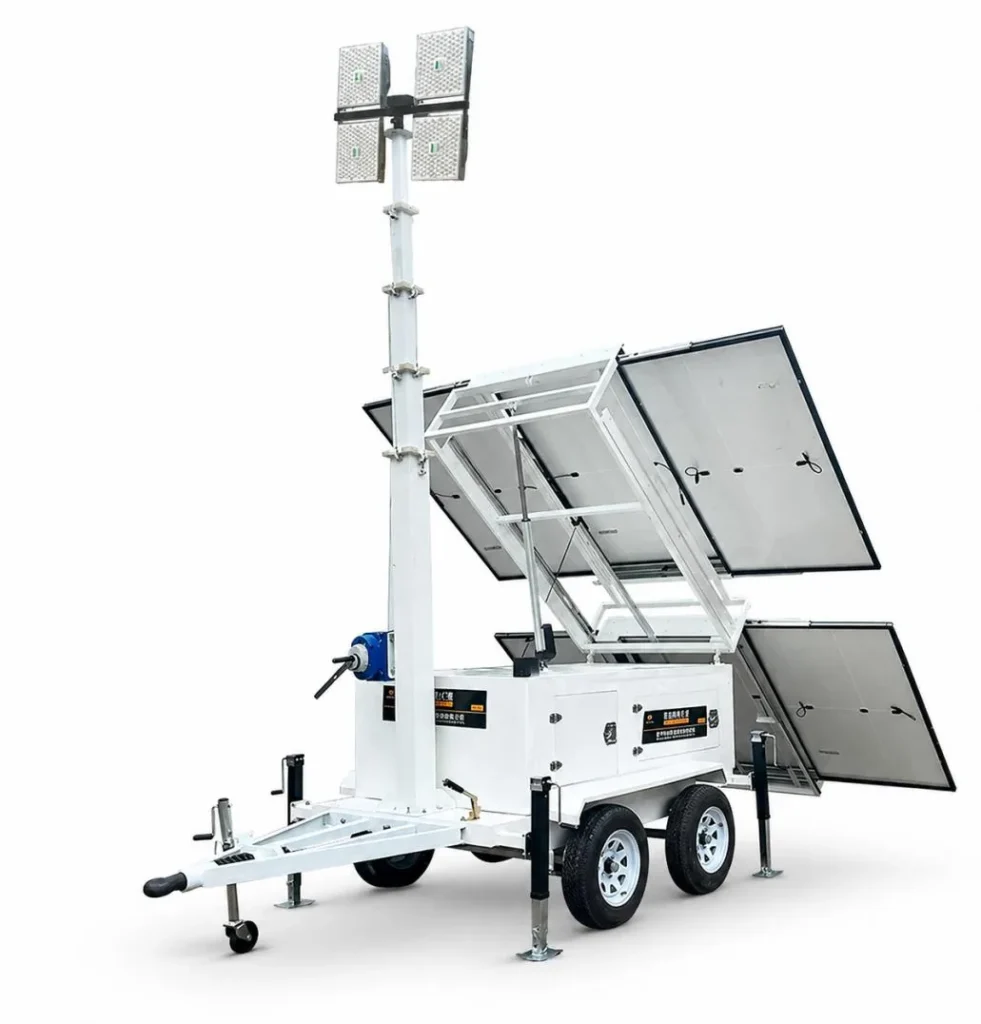

The ILTM90M-SH4 is a hybrid solar light tower with four 100 W LED lamps (36,000 lm) on a 9.0 m manual-winch mast. A 2000 W solar array charges a 12 kWh GEL battery bank, and a 3.0 kW silent diesel engine starts and stops automatically based on battery voltage, so the lights can run continuously.
Specifications
| Model | ILTM90M-SH4 |
|---|---|
| Power system | Hybrid energy (solar + diesel backup) |
| Light source | High-efficiency LED |
| Power of lights | 4 × 100 W |
| Total luminous flux | 36,000 Lm (4 × 9000 Lm) |
| Illumination area | 1500 ㎡ |
| IP rating | IP65 weatherproof |
| Tilt adjustment | Electric vertical tilt (0–90°) |
| Lifting mechanism | Heavy-duty manual winch |
| Maximum mast height | 9.0 m (29.5 FT) |
| Total solar array capacity | 2000 W (5 × 400 W) |
| Panel type | Monocrystalline silicon |
| Panel deployment | Manual slide-out with heavy-duty rails |
| Battery type | Deep-cycle GEL battery |
| Battery bank capacity | 12 kWh (4 × 250 Ah / 12 V DC) |
| Controller type | MPPT solar controller |
| Control modes | Timer / light sensor / manual / auto-hybrid |
| Charging time | Approx. 8 hours (optimal sunlight) |
| Runtime (full load) | ≥30 hours (battery only) / continuous (hybrid) |
| Generator type | 3.0 kW silent diesel engine |
| Fuel tank capacity | 40 L (integrated) |
| Hybrid logic | Auto-start/stop based on battery voltage |
| Chassis type | Dual-axle trailer |
| Tire size | 4 × 185 R15 |
| Stabilizers | 4 heavy-duty extendable outriggers |
| Tow hitch & bar | Ball coupling with retractable jockey wheel |
| Parking brake | Mechanical parking brake |
| Tail lights | Rear tail reflectors |
| Max. towing speed | 80 km/h (50 mph) |
| Wind speed rating | 80 km/h (50 mph) |
| Deployed dimensions | 3800 × 2400 × 9000 mm |
| Stowed dimensions | 2600 × 2400 × 2800 mm |
| Transport dimensions | 2800 × 2600 × 2600 mm |
| Gross weight | 1950 kg |
