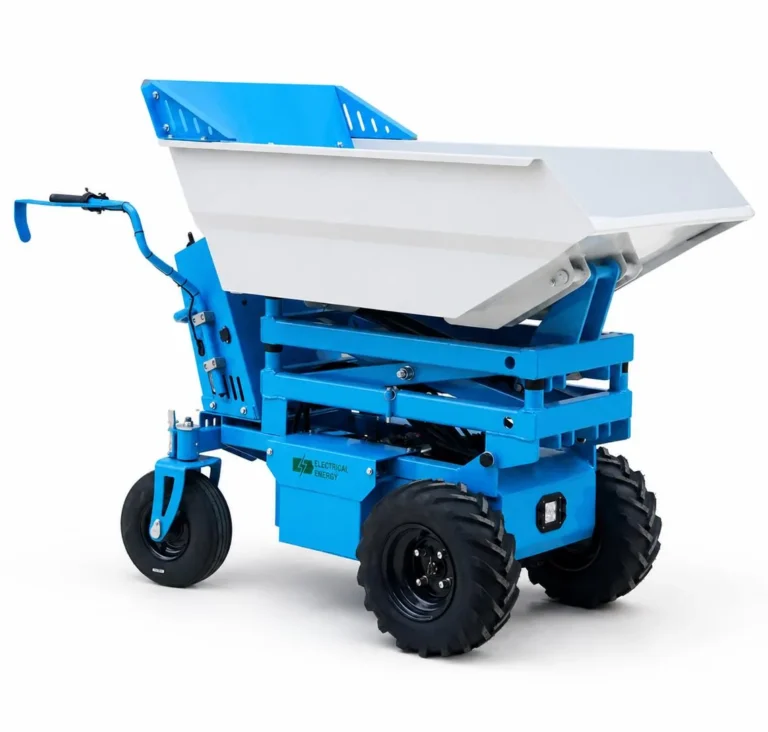

ET-500L Electric Lift Dumper
Model: ET-500L
Power type: Electric
ET-500A Electric Mini Dumper
Model: ET-500A
Key Specifications
- Load capacity: 500–1000 kg
- Battery: 48V, 32Ah lead-acid battery
- Motor: 1 kW brushless motor
- Runtime: 8–12 hours
- Dump system: Hydraulic tipping
Specifications & Options
Product Details
The ET-500A is an electric mini dumper with hydraulic tipping. It runs on a 48V, 32Ah lead-acid battery and a 1 kW brushless motor, carries 500–1000 kg and works for 8–12 hours.
Specifications
| Model | ET-500A |
|---|---|
| Load capacity | 500–1000 kg |
| Battery | 48V, 32Ah lead-acid battery |
| Motor | 1 kW brushless motor |
| Runtime | 8–12 hours |
| Charge time | 6–8 hours |
| Brake | Electromagnetic brake |
| Dump system | Hydraulic tipping |
| Headlights | 2 × 30 W LED |
| Charger current | 4.5A |
| Speed | 0–2 / 0–4.5 / 0–5.2 km/h (L/M/H) |
| Tire size (F/R) | 16 × 6.50-8 / 13 × 5.00-6 |
| Overall dimensions | 188 × 90 × 105 cm |
| Machine weight | 220 kg |
Keep exploring
Related Products
-
-

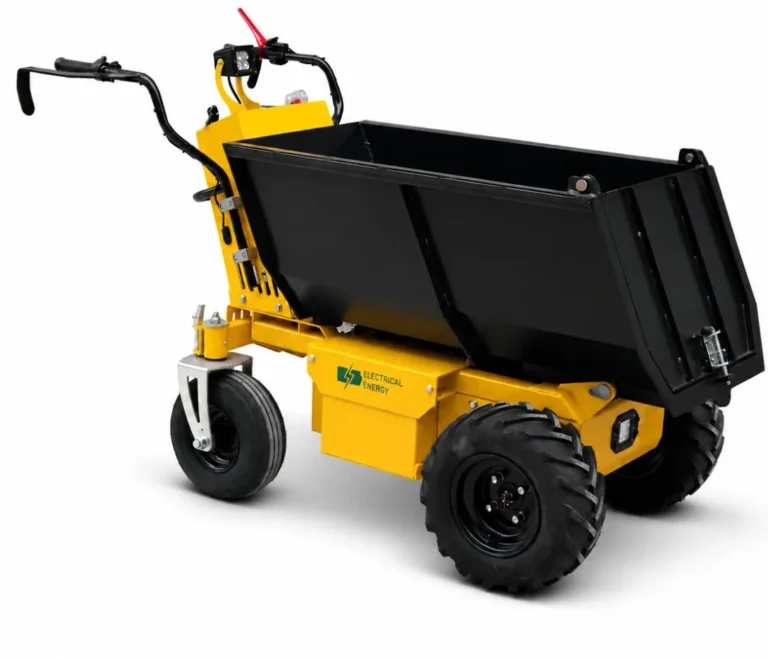

ET-500C Electric Mini Dumper
Model: ET-500C
-

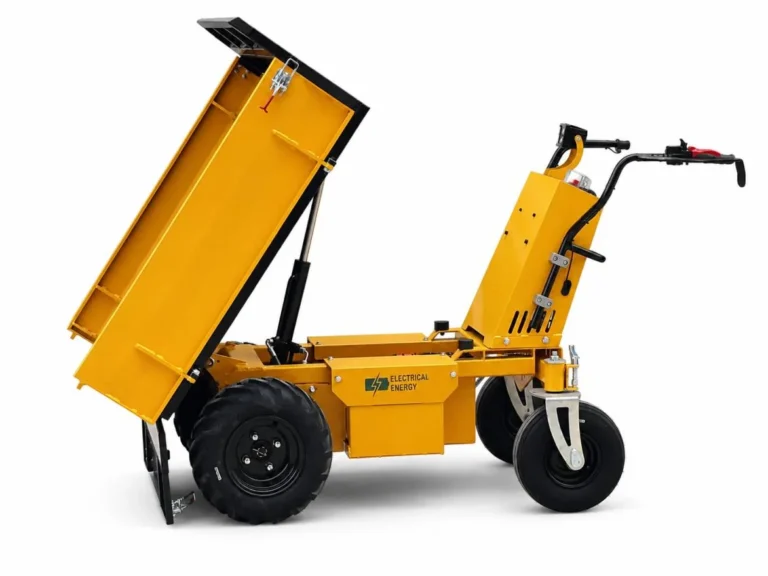

ET-500D Electric Mini Dumper
