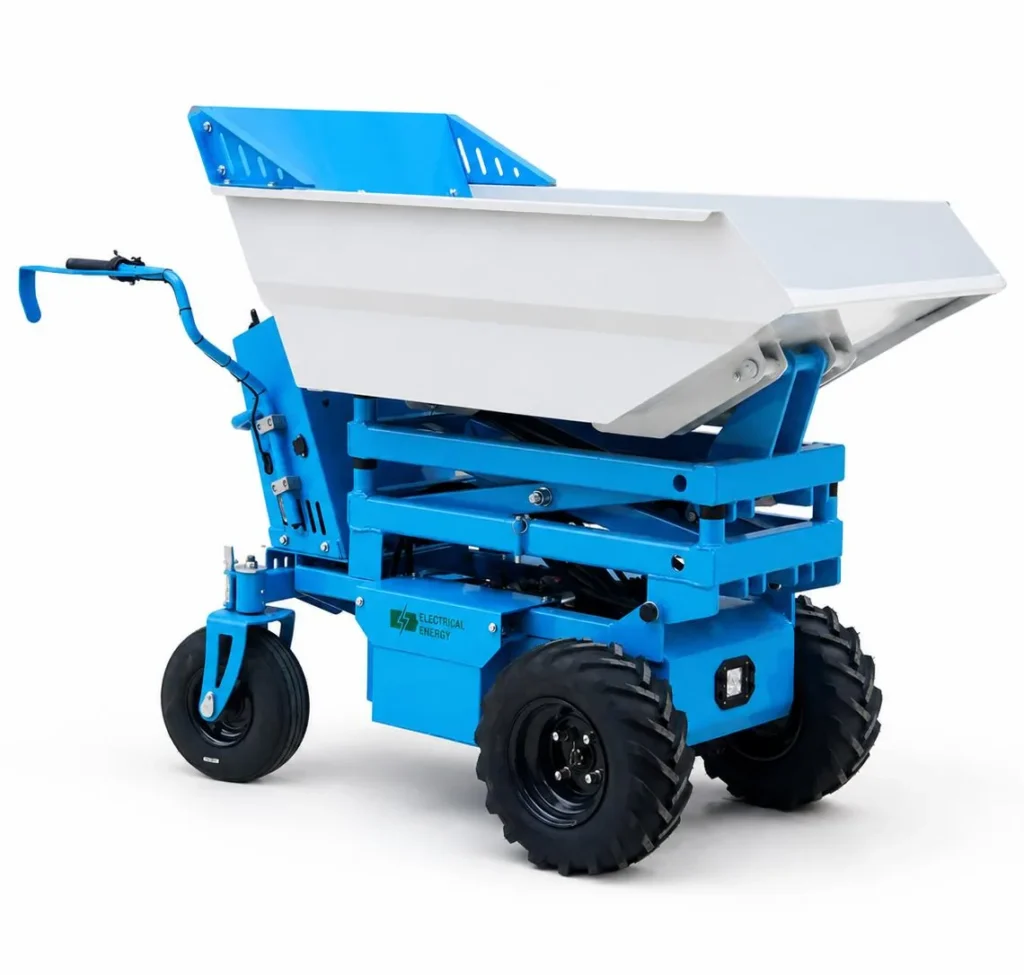

ET-500L Electric Lift Dumper
Model: ET-500L
Key Specifications
- Load capacity: 500 kg
- Lifting height: 1.25 m
- Battery: 48V, 32Ah lead-acid battery
- Motor: 1 kW brushless motor
- Runtime: 8–12 hours
Customization Options
- Sand tires
Specifications & Options
Product Details
The ET-500L is an electric lift dumper that raises its load to 1.25 m with a hydraulic lift and tips it with a hydraulic dump. It uses a 48V, 32Ah lead-acid battery and a 1 kW brushless motor, carries 500 kg and works for 8–12 hours. Sand tires are optional.
Specifications
| Model | ET-500L |
|---|---|
| Load capacity | 500 kg |
| Battery | 48V, 32Ah lead-acid battery |
| Motor | 1 kW brushless motor |
| Runtime | 8–12 hours |
| Charge time | 6–8 hours |
| Brake | Electromagnetic brake |
| Lifting height | 1.25 m |
| Lift & dump system | Hydraulic lift + hydraulic dump |
| Headlights | 2 × 30 W LED |
| Charger current | 4.5A |
| Speed | 0–2 / 0–4.5 / 0–5.2 km/h (L/M/H) |
| Tire size (F/R) | 16 × 6.50-8 / 13 × 5.00-6; sand tires optional |
| Overall dimensions | 184 × 94 × 130 cm |
| Machine weight | 295 kg |
Optional Configurations
- Sand tires
