ET-500L Electric Lift Dumper
Model: ET-500L
Power type: Electric

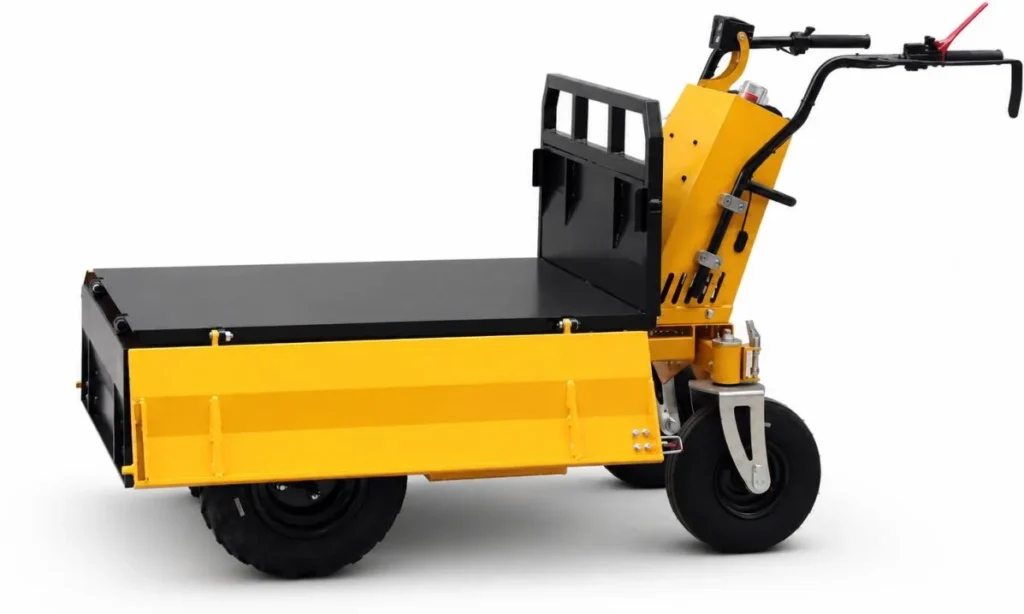

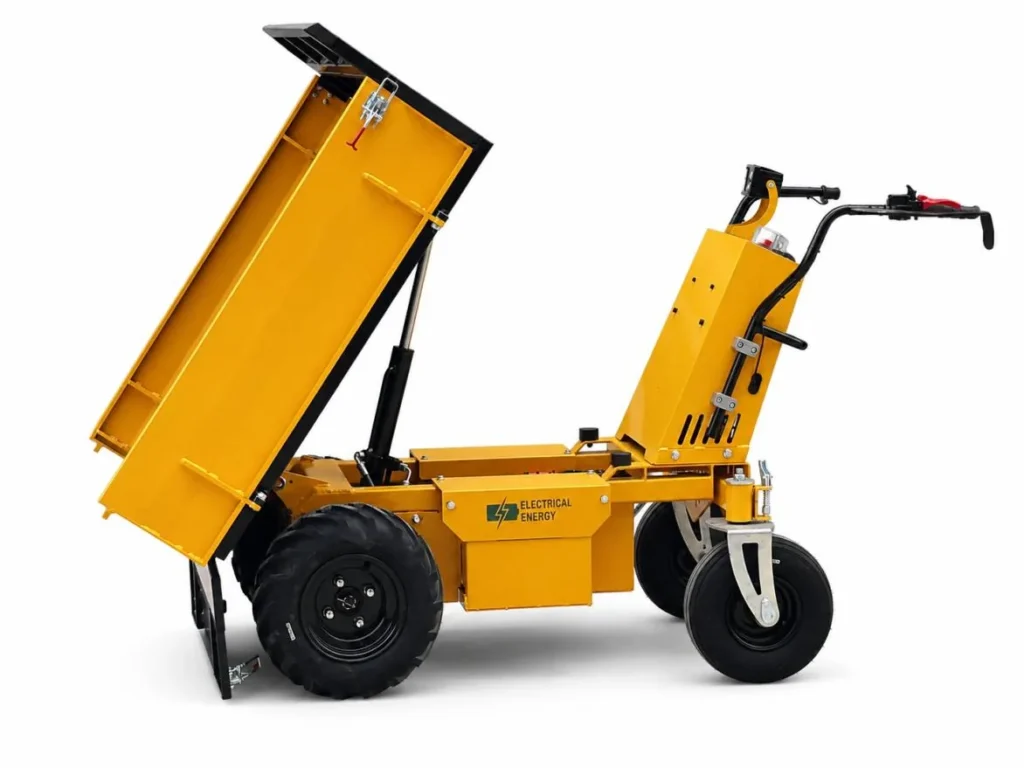

ET-500D Electric Mini Dumper
Model: ET-500D
Key Specifications
- Load capacity: 500–1000 kg
- Dump bed dimensions: 103 × 84 × 29 cm
- Battery: 48V, 32Ah lead-acid battery
- Motor: 1 kW brushless motor
- Runtime: 8–12 hours
Customization Options
- Sand tires
Specifications & Options
Product Details
The ET-500D is an electric mini dumper with hydraulic tipping and a 103 × 84 × 29 cm dump bed. It uses a 48V, 32Ah lead-acid battery and a 1 kW brushless motor, carries 500–1000 kg and works for 8–12 hours. Sand tires are optional.
Specifications
| Model | ET-500D |
|---|---|
| Load capacity | 500–1000 kg |
| Battery | 48V, 32Ah lead-acid battery |
| Motor | 1 kW brushless motor |
| Runtime | 8–12 hours |
| Charge time | 6–8 hours |
| Brake | Electromagnetic brake |
| Dump system | Hydraulic tipping |
| Headlights | 2 × 30 W LED |
| Charger current | 4.5A |
| Speed | 0–2 / 0–4.5 / 0–5.2 km/h (L/M/H) |
| Tire size (F/R) | 16 × 6.50-8 / 13 × 5.00-6; sand tires optional |
| Overall dimensions | 180 × 94 × 110 cm |
| Dump bed dimensions | 103 × 84 × 29 cm |
| Machine weight | 240 kg |
Optional Configurations
- Sand tires
Keep exploring
Related Products
-
-
ET-500C Electric Mini Dumper
Model: ET-500C
-

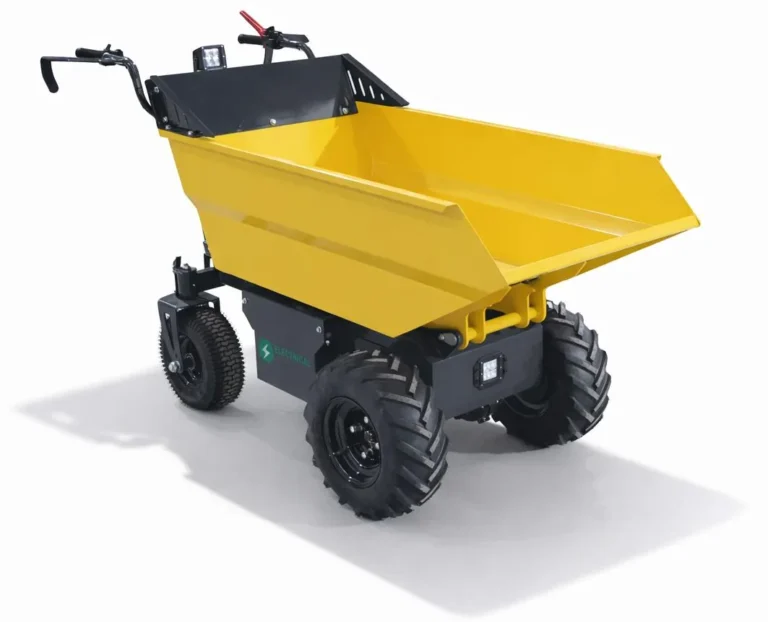

ET-500A Electric Mini Dumper
