ILTM90H-SD light tower lighting a road at night

Power type: Diesel Generator

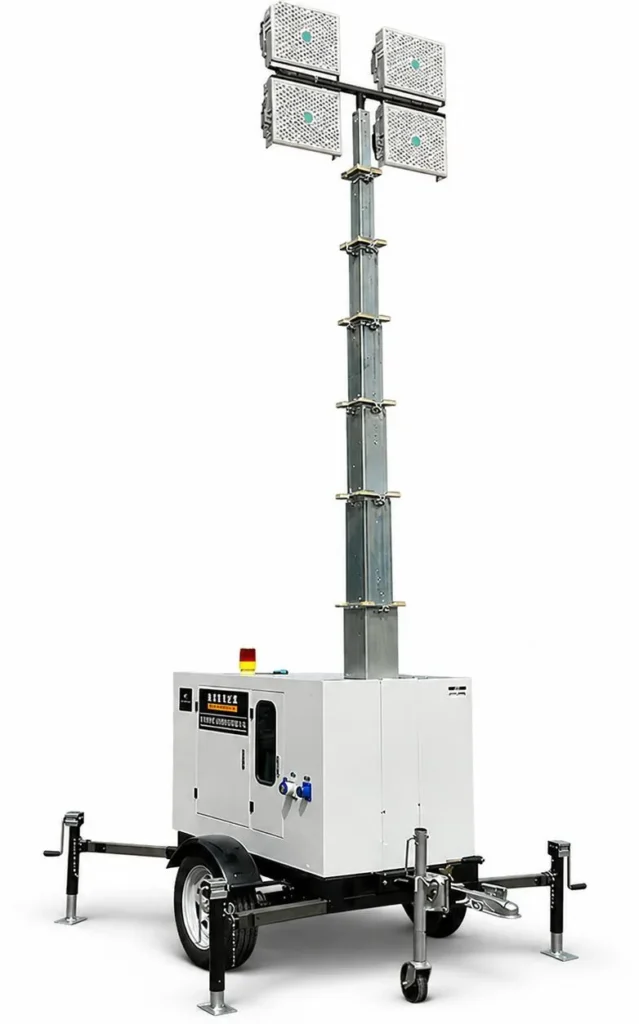

ILTM90H-SD Hydraulic Diesel Light Tower

Model: ILTM90H-SD

Key Specifications

Light power: 4 × 500 W LED
Max lifting height: 9.0 m (29.5 FT), hydraulic
Engine: Silent diesel engine (enclosed), 8.0 kW
Runtime @ full load: ≥40 hours
Total weight: 950 kg (without fuel)

Customization Options

Upgraded version: 4 hydraulic outriggers<br />
Cooling system: 10 kW water-cooled diesel engine<br />
Engine options: Yanmar or Kubota available upon request

Contact our team

Specifications & Options

Product Details

The ILTM90H-SD is a towable diesel light tower with four 500 W LED lamps (280,000 lm) on a heavy-duty hydraulic mast that extends to 9.0 m in 13 seconds. A silent enclosed 8.0 kW diesel engine runs it for 40 hours or more at full load, at no more than 70 dB(A) at 7 m.

Specifications

Model	ILTM90H-SD
Light source type	High-efficiency LED
Light power	4 × 500 W
Total luminous flux	280,000 Lm
Illuminated area	Up to 3,000 ㎡
Light fixture adjustment	Horizontal: 360° / Vertical: 90°
Lifting method	Hydraulic
Max lifting height	9.0 m (29.5 FT), 9 sections
Retracted height	2.3 m
Lifting time	13 s (up) / 25 s (down)
Rotation angle	Manual 360°
Mast weight	65 kg
Engine type	Silent diesel engine (enclosed)
Rated power output	8.0 kW
Operating voltage	AC 220 V / 50 Hz (customizable)
Starting method	Electric start
Fuel tank capacity	100 L
Runtime @ full load	≥40 hours
Noise level (at 7 m)	≤70 dB(A)
Engine oil capacity	2.3 L
Working size	2300 × 2400 × 9100 mm
Chassis type	Towable mobile trailer
Max. wind speed (wind load)	80 km/h (50 mph)
Tires	2 × 185/70R13 (pneumatic tires)
Total weight	950 kg (without fuel)
Outriggers	4 heavy-duty stabilizers
IP rating (lamp / control)	IP66 / IP54
Auxiliary power output	1 × 16 Amp + 1 × 32 Amp, 230 V sockets
Shipping dimensions	Chassis: 1600 × 1500 × 2300 mm; mast: 2000 × 1600 × 1700 mm
