ILTM90H-SD Hydraulic Diesel Light Tower
Model: ILTM90H-SD
Power type: Diesel Generator
ILTM90P-D Pneumatic Diesel Light Tower
Model: ILTM90P-D
Key Specifications
- Light power: 4 × 500 W LED
- Max lifting height: 9.0 m (29.5 FT), pneumatic
- Generator: Diesel generator, 8.0 kW
- Runtime @ full load: ≥32 hours
- Total weight: 850 kg (without fuel)
Specifications & Options
Product Details

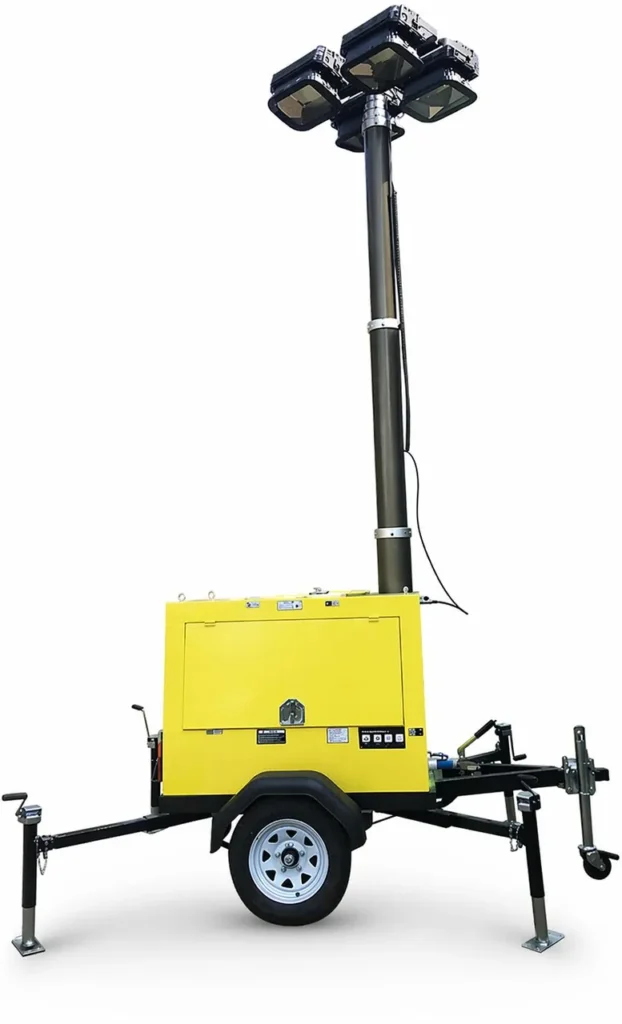

The ILTM90P-D is a towable diesel light tower with four 500 W LED lamps (280,000 lm) on a pneumatic mast that rises to 9.0 m. An 8.0 kW air-cooled diesel generator under a weatherproof canopy runs it for 32 hours or more at full load, at approx. 80 dB at 7 m.
Specifications
| Model | ILTM90P-D |
|---|---|
| Light source type | High-efficiency LED |
| Light power | 4 × 500 W |
| Total luminous flux | 280,000 Lm |
| Illuminated area | 2,500 ㎡ |
| Light fixture adjustment | Horizontal: 360° / Vertical: 90° |
| Lifting method | Pneumatic (air-operated) |
| Max lifting height | 9.0 m (29.5 FT) |
| Retracted height | 2.2 m |
| Generator type | Diesel generator with weatherproof canopy |
| Operating voltage | AC 220 V / 50 Hz |
| Rated power output | 8.0 kW |
| Starting method | Electric start |
| Cooling system | Air-cooled |
| Fuel tank capacity | 80 L |
| Runtime @ full load | ≥32 hours |
| Noise level | Approx. 80 dB at 7 m |
| Chassis type | Towable mobile trailer |
| Tires | 2 × 185/70R13 (pneumatic tires) |
| Overall dimensions (working) | 2800 × 2600 × 9100 mm |
| Max. wind speed | 80 km/h (50 mph) |
| IP rating (lamp / control) | IP66 / IP54 |
| Outriggers | 4 adjustable heavy-duty stabilizers |
| Auxiliary power output | 2 × 16 Amp, 230 V sockets |
| Total weight | 850 kg (without fuel) |
| Shipping dimensions | 2400 × 1450 × 2200 mm (integrated packing) |
