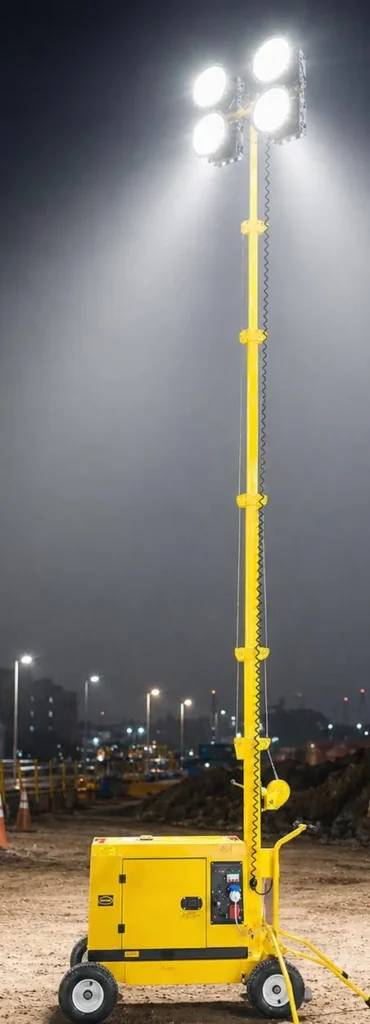

ILTP45M-SD portable light tower illuminating a site at night

Power type: Diesel Generator

ILTP45M-SD Portable Diesel Light Tower

Model: ILTP45M-SD

Key Specifications

Light power: 4 × 300 W LED
Max lifting height: 4.5 m (14.7 FT)
Generator: Silent diesel generator, 3 kW
Runtime @ full load: ≥13 hours
Total weight: 150 kg

Customization Options

Metal halide lamps: 2 × 400 W / 2 × 1000 W
LED lamps: 4 × 1000 W
Manual lifting mast: 6 m
Inflatable light balloon
Pneumatic lifting mast: 4.5 m, 6 m
3 kW / 5 kW open-frame gasoline generator

Contact our team

Specifications & Options

Product Details

The ILTP45M-SD is a portable diesel light tower with four 300 W LED lamps (156,000 lm) on a manual-winch mast that rises to 4.5 m. A silent 3 kW diesel generator runs it for 13 hours or more at full load, and the hand-push base weighs 150 kg.

Specifications

Model	ILTP45M-SD
Light source type	LED
Light power	4 × 300 W
Total luminous flux	156000 Lm
Illuminated area	Up to 1500 ㎡
Light fixture adjustment	Horizontal: 360° / Vertical: 90°
Lifting method	Manual winch
Max lifting height	4.5 m (14.7 FT)
Retracted height	1.6 m
Mast weight	30 kg
Generator type	Silent diesel generator
Operating voltage	AC 220 V / 50 Hz
Rated power output	3 kW
Starting method	Electric start
Fuel tank capacity	15 L
Runtime @ full load	≥13 hours
Chassis type	Portable hand-push base
Overall dimensions	1220 × 950 × 2100 mm
IP rating (lamp / control)	IP65 / IP54
Max. wind speed (wind load)	45 km/h (28 mph)
Outriggers	4 adjustable stabilizers
Total weight	150 kg
Shipping dimensions	Mast: 1600 × 360 × 180 mm; chassis: 1250 × 950 × 650 mm
Tires	13-inch tubeless tires
